美國蒙納多（美國monarch instrument）Pocket Tach 99光電轉速表是一款數字、電池供電的便攜式非接觸式光學轉速計（紅色 LED），它使用 LED 光源在距離反光帶目標zui遠 36 英寸處工作。符合人體工程學的設計允許同時安全、直接地觀察旋轉目標和顯示器，同時為單手操作提供防滑橡膠表面。

Basic non-contact Optical Tachometer
 Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time while providing a non-slip rubber surface for single-hand operation. Pocket Tach Tach99 is the value leader of the world-class Pocket Tach Series from Monarch.

Pocket Tach 系列儀器都提供獨特的人體工程學設計，讓您可以同時安全地觀察顯示器和旋轉目標。
 操作距離可達 36 英寸*
 LED光源
 易于使用的單手操作


 All Pocket Tach Series instruments provide a unique ergonomic design that allows you to safely observe both the display and the rotating target at the same time.
 Operating distance up to 36 inches*
 LED light source
 Easy-to-use single-handed operate

pt99手持式光電轉速表技術參數：

 pocket tach 99 is a digital, battery-powered portable non-contact optical tachometer (red led), which operates up to 36 inches from a reflective tape target using an led light source. the ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time, while providing a no-slip rubber surface for single hand operation. pocket tach 99 in the value-leader of the world-class pocket tach series from monarch.

all pocket tach series instruments provide a unique ergonomic design which allows you to safely observe both the display and the rotating target at the same time.

display: 5 digits, 5 alpha-numeric lcd
 range: 5 to99,999 rpm
 accuracy: ±0.01% or ±1 digit
 resolution: autoranging: 0.001 to 1.0 rpm
 fixed: 1 digit rpm
 operating range: 2 inches to 36 inches, ±30°
 memory: maximum, minimum and last
 power: (2) "aa" 1.5 vdc batteries (20 hours)
 environmental: 5° to 40°c (40° to 105°f)
 80% rh up to 31°c (88°f)
 dimensions: 6.92 "h x 2.4"w x 1.6"d
 weight: 7 oz. (210 g)
 standards: iec1010-1

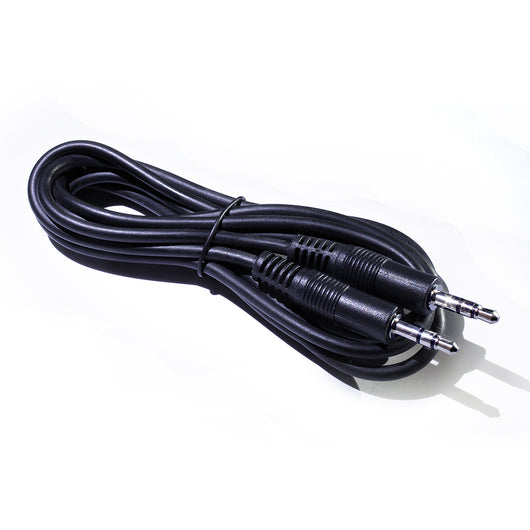

PT99轉速表的輸入/輸出電纜 CA-4045-6

產品編號：6280-038

6 英尺 TTL 輸入/輸出電纜，1/8" 立體聲插頭到 1/8" 立體聲插頭。用于將一個閃光燈的輸出連接到另一個閃光燈的輸入。

美國蒙拿多頻閃觀測儀

 1. nova-strobe

bbl型 led光源 精度0.01fpm 30-500,000fpm
dbl型 led光源 精度0.01fpm 30-500,000fpm 外接轉速
pbl型 led光源 精度0.01fpm 30-500,000fpm  轉速 相位 延遲
 bax型 數字液晶顯示, 電源驅動 30--10,000fpm
 bbx型 數字液晶顯示, 電池驅動 30--10,000fpm
 dax型 數字液晶顯示, 電源驅動 30--20,000fpm
dbx型 數字液晶顯示, 電池驅動 30--20,000fpm

2. phaser-strobe pbx型 帶時間及角度延遲 30--50,000fpm

3. palm strobe psx型 超小型 可拆卸充電電池 100-12,500fpm
 psx 備用電池包
 頻閃儀備用燈管l-1903，l1904

美國蒙拿多數字式光電轉速表

1.pocket-tach pt99型 非接觸 精度0.01% 5--100,000rpm
 2. plt 200 激光型 非接觸 精度0.01% 5-200,000rpm
 plt 200 kit 激光型 接/非兩用 精度0.05% 0.5-20,000rpm
 32功能, 計數器, 定時器，線速度

3. act-1b (分體式) 精度0.005% 5-99,999rpm
 act-3x（分體式基本型）精度0.0015% 5-999,990rpm
 act-3x（分體式定制型）usb、5v模擬輸出、報警、12v直流供電

4. ros光電傳感器
 rols激光傳感器
 irs紅外傳感器
 spsr自供電傳感器
 sls激光傳感器
 5. ge-200發動機轉速表傳感器

本產品的加工定制是否，品牌是蒙拿多，型號是PT99，類型是光電式轉速計，測量精度是±0.01％，尺寸是176×61×41mm（mm），測量電壓范圍是口袋型轉速表（V），測量電流范圍是口袋型轉速表（A），測量電阻范圍是口袋型轉速表（Ω），重量是0.21（kg）

美國Monarch Instrument公司:

自1977年以來，Monarch Instrument作為全球zui大的轉速測量儀器和頻閃檢測設備供應商，不斷致力于儀器創新。我們全面的精密產品線和校準服務使 Monarch 成為轉速計、頻閃儀、速度傳感器、數據記錄器和數據采集系統的專業選擇。

Monarch 的多項專利技術、堅固且可靠。

illumiNova? 固定式頻閃儀

Nova-Pro? 頻閃儀/轉速計

PLS 袖珍型 LED 頻閃儀

Track-It? 指示壓力/溫度記錄儀

DataChart? 6000 無紙記錄儀

Monarch 的全方位服務銷售隊伍和全球分銷網絡隨時準備提供可靠及時的技術服務。

Monarch Instrument致力于制造、銷售和服務的創新和質量。

About Monarch Instrument

THE PROFESSIONAL’S CHOICE FOR ALMOST 45 YEARS!

Since 1977, Monarch Instrument continues to make strives in instrumentation innovation as the world’s largest supplier of rotational speed measuring instruments and stroboscopic inspection equipment. Our comprehensive lines of precision products and calibration services make Monarch the professional’s choice for tachometers, stroboscopes, speed sensors, data loggers, and data acquisition systems.

Monarch’s multi-patented technologies are precise, rugged and reliable.

illumiNova? Fixed Mount Stroboscopes

Nova-Pro? Stroboscope/Tachometer

PLS Pocket LED Stroboscope

Track-It? Indicating Pressure/Temp Logger

DataChart? 6000 Paperless Recorder

Monarch’s full-service sales force and worldwide distribution network stands ready offering unsurpassed customer service.

Monarch Instrument is committed to innovation and quality in manufacturing, sales, and service.
