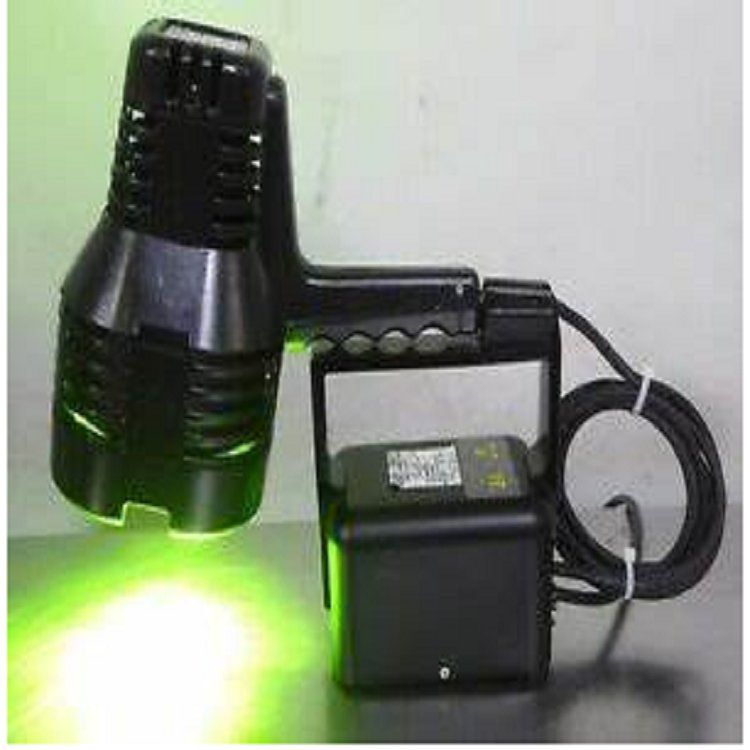

美國UVP B-100YP高強度表面檢查燈內置的是100w高壓汞燈燈泡，并采用黃色濾光片將500nm一下的波段過濾掉，只允許綠光和黃光通過，肉眼看上去是黃綠色光線。B-100Y美國UVP表面晶粒檢查燈可快速檢查加工表面的瑕疵，灰塵，異物等。B-100Y表面晶粒檢查燈應用：LCD濾光片、偏光板、晶圓、半導體、玻璃或金屬表面刮痕及灰塵檢查。

B-100Y美國UVP黃綠光表面晶粒檢查燈主要特點

? 檢查精密加工表面的瑕疵、污點、異物等

? 快速無損檢測小至10微米的瑕疵、小顆粒

? 有效地探測出生產過程是早期的污物，節省生產時間及不必要的成本

? 100瓦高強度汞燈發出543,574及576nm波長光譜

? 黃色濾色片濾掉波長小于500nm的光線，防止產生熒光干擾

? 高對比度的光線能清晰檢測到精細的表面粒子

? B-100Y是鋁合金外殼; B-100YP帶塑料外殼

? 燈頭易于操作

B-100Y和B-100YP區別

黃色濾光片能濾掉波長小于500nm的光線，產生543nm、574和576nm的光線。高對比度的光線可檢測表面小于10微米的顆粒。

B-100Y表面檢查燈為鋁合金外殼，工作中會造成高溫，沒有保護措施。

B-100YP表面檢查燈帶塑料外殼，工作中產生的高溫，可以有效的阻隔人員接觸，避免不必要的燙傷。

B-100Y美國UVP黃綠光表面晶粒檢查燈規格

UV光源：365nm長波紫外線

功率：100W

濾色片：黃光

尺寸：

B-100Y：216X140mm

重量：5.33kg

電源線：2.44米

B-100YP：248X152mm

重量：5.67kg

電源線：2.44米

美國UVP大面積高強度紫外線燈的型號和應用選擇：

UVP High Intensity UV Lamps

B-100 "P" series lamps come with heat-resistant plastic (Cool-Touch) housing allowing users to handle the lamp head regardless of how long the lamp has been operating

Non "P" models are built with an aluminum lamp head

A 100 watt spot bulb is standard with all models (except the B-100SP); the bulb is rated at 5000 hours

Self-ballasted bulb included with the B-100SP has an average life of 450 to 2000 hours depending on use patterns

The lamp head connects to the transformer base for hands free use (all models except B-100SP) allowing the lamp head to rotate a full 360°; remove the lamp from the base for additional mobility

Product Details

The UVP Blak-Ray B-100 Series high powered UV lamps offer brilliant irradiance for optimum fluorescence. The B-100AP lamp is placed in the transformer base for hands-free operation.

B-100AP and B-100AP/R

B-100AP models feature 100 watt longwave UV, Cool-Touch housing and ballast base. At 18 in. (457 mm), the lamp produces a highly intense center of UV irradiance about 5 in. (127 mm) in diameter. Lamp head can rotate 360 degrees when attached to the base for hands-free operation or lamp can be removed from the base. 8 ft primary and secondary cords. For added mobility, select the B-100AP/R which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100A and A-100AR

The longwave B-100A is manufactured with a scratch-resistant aluminum housing which connects to ballast base with an 8 foot cord; 8 foot secondary cord is included. The 100 watt longwave UV bulb is excellent for inspection applications. For increased mobility, select the B-100AR which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100SP

This 90 watt longwave, self-ballasted lamp is a highly portable, high intensity lamp for automotive leak detection applications. The ballast is built directly into the bulb. The B-100SP features the Cool-Touch housing and an 8 ft. (2.44m) cord.

B-100Y and B-100YP

These models feature a yellow filter which blocks wavelengths shorter than 500 nm and produces three strong mercury lines at 543, 574 and 576 nm. The high contrast light is produced for fine surface particle detection. Particles down to 10 microns are routinely visible with this lamp. The B-100Y is built with aluminum housing and the B-100YP with a plastic housing. These lamps are excellent for semiconductor wafer inspection as most photoresist absorption occurs below 450 nm.

Applications include:

Fluorescence Inspections

Non Destructive Testing

Leak Detection
