SPECTRO-UV NDT 手持式 UV-A LED 紫外燈
uVision? 365 系列IP 級檢查燈，提供高強度或標準強度；提供手機版！適用于 UV-A 檢查，無風扇散熱系統，ISO 3059 標準；
uVision? 365 豪華系列，P 級豪華檢查燈，提供高強度或標準強度；提供手機版！無損檢測無風扇散熱系統符合 ASTM 和 RRES
uVision? 365 Z 型號，帶手柄內鋰離子電池。可充電，IP65，提供多種強度和合規性。
UVISION? 365 SERIES NDT UV LAMP
Meet ISO 3059 Standards
Lightweight, IP 65 Rated inspection lamps can be used in nondestructive evaluation, forensics, and security inspections. In addition to three powerful UV-A LEDs, the uVision comes with a convenient White LED for illuminating work areas.
UV-365EH/UV-365ES無損檢測紫外燈
UV-365MEH無損檢測紫外燈
UV-365ZEH無損檢測紫外燈

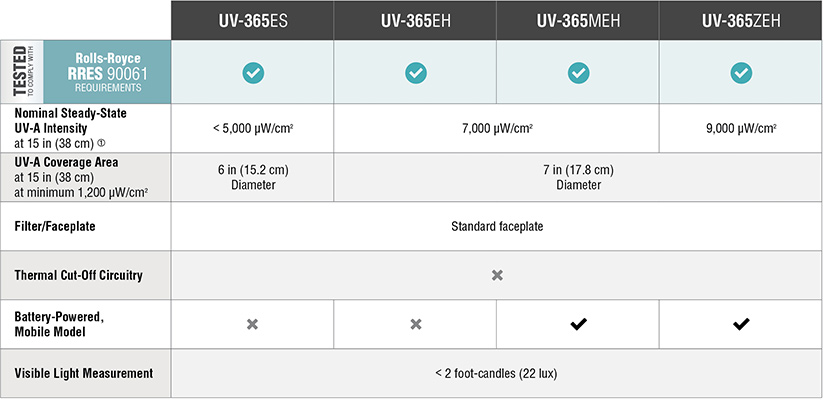

| Product No. | Description |

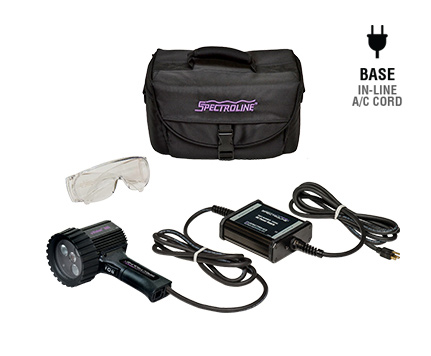

| UV-365ES | Standard Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, Heavy-Duty 8′ AC Cord, UVS-30 Spectacles & Soft Carrying Case |
| UV-365EH | High Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, Heavy-Duty 8′ AC Cord, UVS-30 Spectacles & Soft Carrying Case |
| UV-365ZEH | High Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, In-Handle Lithium-Ion Battery, 130448 Charger, Heavy-Duty 4′ AC Cord, UVS-30 Spectacles & Protective Case |

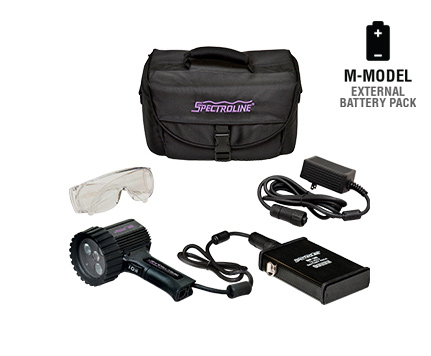

| UV-365MEH | High Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, BP-30 NiMH Battery Pack, Heavy-Duty 8′ AC Cord, UVS-30 Spectacles & Soft Carrying Case |
Also available in foreign voltages
? UV-A intensity reading taken with the Spectroline AccuMAX? Series meter, and is factory set to the value shown.
Each lamp is fitted with an 8-foot cord and the appropriate plug for the country of destination. Also available in 20-foot cord models.
FOR USE IN ANY NONDESTRUCTIVE EVALUATION OR SPECIALTY APPLICATION THAT REQUIRES UV-A LIGHT.

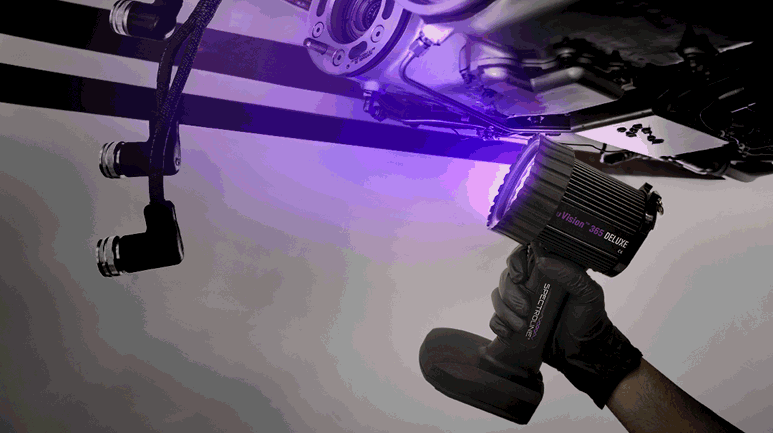

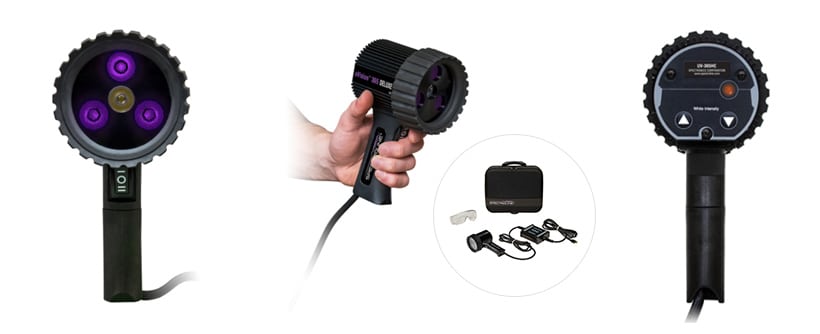

UVISION? 365 DELUXE SERIES NDT uv lamp
IP 65 RATED – Dust Tight/Protected Against Jets of Water so your lamp is protected in harsh environments
FANLESS & COOL RUNNING – No fan means fewer repairs and no dust clogs, and the lamp stays cool to the touch, cutting down on fire and burn hazards
LIGHTWEIGHT & RUGGED – Lightweight enough for using all day, and rugged enough for your work environment
WHITE LIGHT INTENSITY ADJUSTMENT – Easier on the eyes of NDT Inspectors
EXTREMELY LOW VIOLET HUE/VISIBLE LIGHT EMISSION – Brilliant fluorescent responses
Rolls Royce RRES 90061, ASTM 3022, and Airbus AITM6-1001 Compliant Versions:
| Product No. | Description |
| UV-365SBLC | Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, FP-600 Borofloat Filter Protector, 8′ AC Cord, UVS-30 Spectacles & Protective Case |
| UV-365ZSBLC | Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, In-Handle Lithium-Ion Battery, 130448 Charger, FP-600 Filter Protector, 4’ AC Cord, UVS-30 Spectacles & Protective Case |
| UV-365MSBLC | Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UVA Pass Filters, BP-30 NiMH Battery Pack, 126834 AC Charger, FP-600 Borofloat Filter Protector, 8’ AC Cord, UVS-30 Spectacles & Protective Case |
| UV-365SBLCR | Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, FP-600 Borofloat Filter Protector, Reel with 50′ Cord, 8′ AC Cord, UVS-30 Spectacles |
ASTM E3022 Compliant Versions:
| Product No. | Description |
| UV-365HC | High Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UVA Pass Filters, FP-600 Borofloat Filter Protector, 8′ AC Cord, UVS-30 Spectacles & Protective Case |
| UV-365ZHC | High Intensity, ASTM, (3) UV-A LEDs, (1) White Light LED with Faceplate with UV-A Pass Filters, Filter Protector, In-Handle Lithium-Ion Battery, AC Charger with 4’ Cord, UV Spectacles & Carrying Case |
| UV-365MHC | High Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UVA Pass Filters, BP-30 NiMH Battery Pack, 126834 AC Charger, FP-600 Borofloat Filter Protector, 8’ AC Cord, UVS-30 Spectacles & Protective Case |
| UV-365HCR | High Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, FP-600 Borofloat Filter Protector, Reel with 50’ Cord, 8′ AC Cord, UVS-30 Spectacles |
*These versions are adjusted to ensure that they provide a maximum steady-state UV-A intensity of less than 5,000 μW/cm2 at 15 in (38 cm)
? UV-A intensity reading taken with the Spectroline AccuMAX? Series meter, and is factory set to the value shown.
Each lamp is fitted with an 8-foot cord and the appropriate plug for the country of destination. Also available in 20-foot cord models.
FOR USE IN ANY MPI/LPI NONDESTRUCTIVE EVALUATION

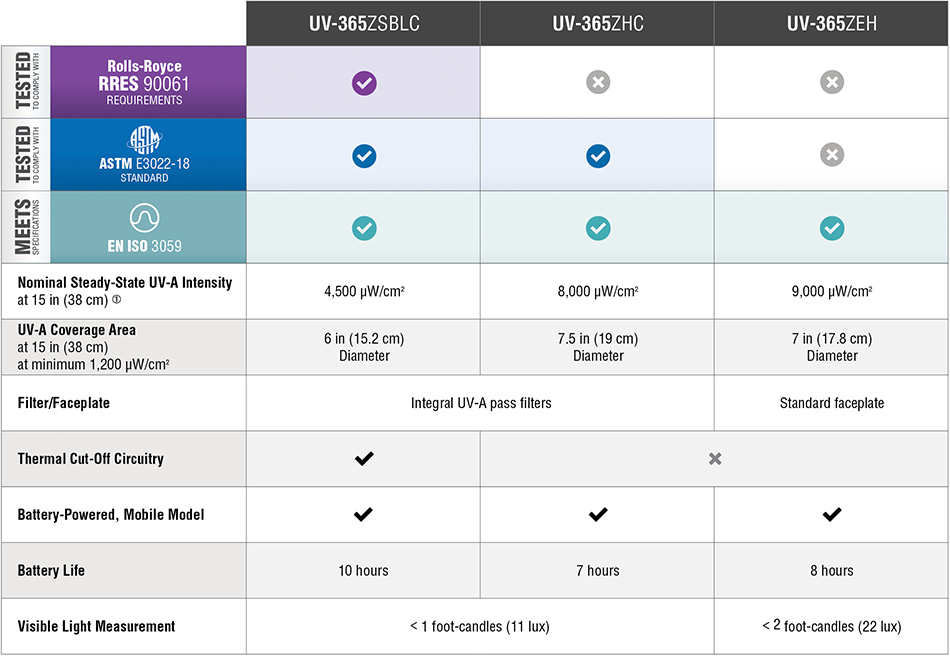

UVISION? 365 Z-MODEL UV LED LAMP
THE UVISION? 365 SERIES IS SPECTRO-UV’S INNOVATIVE LINE OF COMPACT, BROAD-BEAM, HANDHELD NDT LAMPS.
Key Features and Benefits
Cordless – portable for use in the field
Battery in the handle – self-contained unit
Long battery life: 8-12 hours
Quick charging: 3-4 hours
Large battery base – can stand up on its own
D-ring hook on backplate – for storage or belt clip
IP65 rating – dust-proof and water-resistant
Cool-running, fan-less design
Wide, even beam profile
Long-lasting UV-A lenses protect against solarization
Adjustable white light
Meets ISO EN 3059 specs for fluorescent inspection
ASTM E3022 Compliant Versions Available
RRES 90061 Compliant Versions Available
AITM6-1001 Compliant Versions Available
