美國蒙那多 SPSR-115/230自供電傳感器6150-020

選擇型號：SPSR-115/230

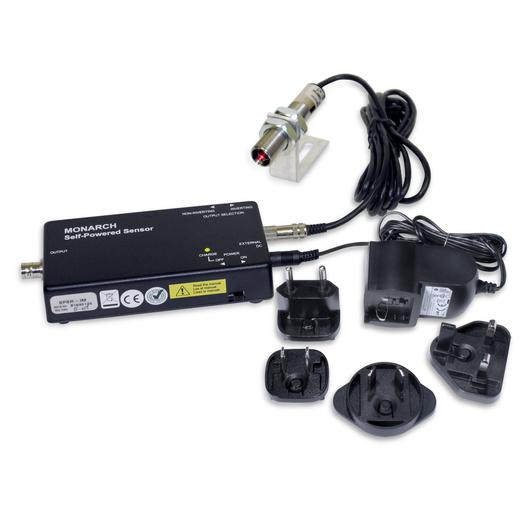

自供電傳感器6150-020 SPSR-115/230 包括：  SPSR-IM、SPSR-U 通用電源/充電器、ROS-P 遠程光學傳感器和 12 英寸反光帶。

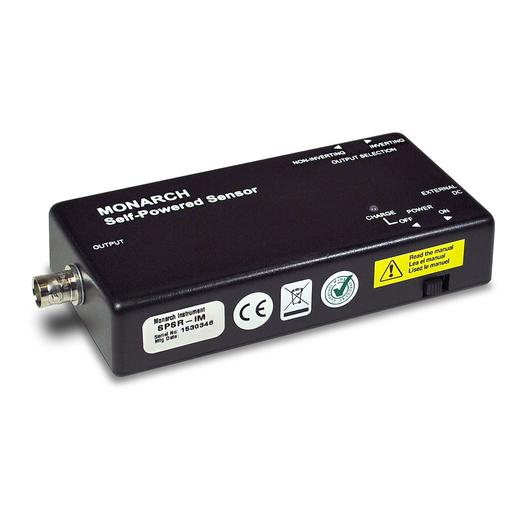

傳感器電源模塊6150-021 SPSR-IM 包括： 帶有 SPSR-U 115/230 Vac 電源/充電器的接口模塊。傳感器必須單獨訂購.

SPSR Self-Powered Sensors PN: 6150-020

Select Model
SPSR-115/230
P/N: 6150-020  SPSR-115/230 Includes: SPSR-IM, SPSR-U Universal Power Supply/Recharger, ROS-P Remote Optical Sensor, and 12 inches of Reflective Tape.
P/N: 6150-021  SPSR-IM Includes: Interface Module with SPSR-U 115/230 Vac power supply/re-charger. SENSOR MUST BE ORDERED SEPARATELY (See Below)

特點：
SPSR 供電模塊支持以下四種轉速傳感器 ROLS-P、ROS-P//IRS-P 和 MT-190P。BNC 接口輸出 0-5V 或 5-0VTTL 信號。內置充電電池可支持傳感器使用 40 小時，SPSR 供電模塊可外接 115Vac、230Vac 和 9-15Vdc 電源連續使用。SPSR 供電模塊加傳感器通過測量轉速將產生的 TTL 信號（每轉一個脈沖信號）提供給振動分析儀、頻譜分析儀、頻閃儀、數據采集卡、轉速表、波形分析儀等設備。

DESCRIPTION
The unique SPSR (Self Powered Sensor) with internal rechargeable batteries provides the required power to any one of (4) Monarch Sensors (see below). The TTL compatible output is switch selectable as either positive going 0-5V pulses or negative-going 5-0V pulses provided on a BNC connector. The internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, the SPSR can be powered by 115/230Vac. Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers, and magnetic tape recorders.

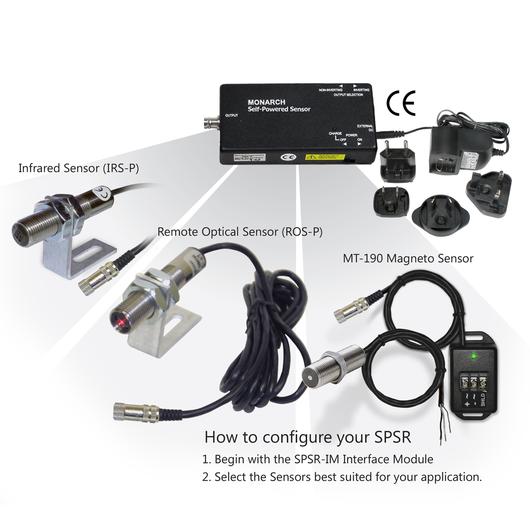

為方便起見，SPSR 115/230 包含我們zui受歡迎的傳感器 ROS-P。SPSR-IM僅為接口模塊，可與以下任何 (4) 個傳感器（單獨訂購）配對，以zui適合您的特定應用：
可見光紅色 LED 光源（型號：ROS-P | PN 6180-057）
可見光紅色激光光源（型號：ROLS-P | PN 6180-029）
紅外光源（型號：IRS-P | PN 6180-020）
放大磁傳感器（型號：MT-190P | PN 6180-036）

For convenience, the SPSR 115/230 includes our most popular sensor, the ROS-P. The SPSR-IM is the interface module only and can be paired with any of the following (4) sensors (ordered separately) to best suit your particular application:
A visible optical red LED light source (Model: ROS-P | PN 6180-057)
A visible optical red Laser light source (Model: ROLS-P | PN 6180-029)
An infrared light source (Model: IRS-P | PN 6180-020)
An amplified magnetic sensor (Model: MT-190P | PN 6180-036)

技術規格
范圍：  (RPM) - 與傳感器相同
輸出信號：  TTL兼容脈沖，0-5V或5-0V
脈沖寬度： 由目標大小和轉速決定
輸出連接器：  BNC 連接器
電源：  四 (4) 節內部可充電 AA 鎳氫電池或 115/230Vac

SPECIFICATIONS*
Range: (RPM) - Same as the sensor
Output Signal: TTL compatible pulse, 0-5V or 5-0V
Pulse Width: Determined by the size of the target and rotational speed
Output Connector: BNC Connector
Power:  Four (4) internal rechargeable AA Ni-MH batteries or 115/230Vac

SPSR 自供電傳感器的運輸代碼：
統一關稅代碼：   9029205000
原產國：  美國
出口管制分類號 (ECCN)：   EAR99

SHIPPING CODES FOR SPSR SELF-POWERED SENSORS:
Harmonized Tariff Code:  9029205000
Country of Origin:  US
Export Control Classification Number (ECCN):  EAR99
