美國UVP UVLM-28雙波長紫外線燈
美國UVP UVLM-28雙波長紫外線燈為8瓦，長波365nm和中波302nm的雙波長組合。
金屬外殼，具有堅固耐用，耐擠壓等特點，EL手持紫外燈有單個波長和多種波長組合可選擇。
UVP UVLM-28雙波長紫外線燈主要特點
從各種波長的選擇：
1. 具有4W，6W或8W的選擇。
2. 可選擇的型號包括254nm的短波，365nm的長波或短波和長波的雙波長紫外組合。
3. 可提供一個紫外光和一個白光的組合配置，被照射的材料在光線昏暗的區域時，可使用白光照明觀察。
4. 雙燈管模式可以選擇一樣的波長或兩種不同的波長。
5. 只有8W的紫外燈可選擇三種波長，UVLMS-38三波長于一體，可輕松切換三種波長（長波，中波和短波）為滿足你的各種測試需要。
6. 堅固耐用的設計促使了高使用率。EL手持燈是重量輕，易于手持或結合支架免提操作。內置反射板，增強紫外強度。
美國UVP UVLM-28雙波長紫外線燈產品規格
1. 功率：8W
2. 波長：2UV；長波365nm和中波302nm
3. 外殼：金屬外殼，具有防刮耐磨粉末涂層
4. 線長：2.5米
5. 尺寸：376×96×64mm
6. 燈架：273x330x76mm
Part Numbers型號
型號 | 貨號 | 功率/波長 | 可替換燈管 |
UVL-28 | 95-0248-02 | 8W，365nm，長波紫外線燈 | 34-0006-01 |
UVLM-28 | 95-0251-02 | 8W，2UV，302nm/365nm，雙波長紫外燈 | 34-0006-01 365nm |
UVLMS-38 | 95-0252-02 | 8W，3UV,254nm/302nm/365nm，三波長紫外燈 | 34-0006-01 365nm 34-0042-01 302nm |
UVLS-28 | 95-0201-02 | 8W, 365nm/254nm，雙波長紫外燈 | 34-0006-01 365nm 34-0007-01 254nm |
UVM-18 | 95-0199-02 | 8W，302nm/白光，中波紫外線燈 | 34-0042-01 |
UVM-28 | 95-0250-02 | 8W，302nm，中波紫外線燈 | 34-0042-01 |
UVS-18 | 95-0200-02 | 8W，254nm/白光，短波紫外線燈 | 34-0007-01 |
UVS-28 | 95-0249-02 | 8W，254nm，短波紫外線燈 | 34-0007-01 |
UVL-18 | 95-0198-02 | 8W，365nm/白光，長波紫外線燈 | 34-0006-01 |
J-138 | 18-0063-01 | Lamp Stand，燈架 | |
UVP EL Series UV Lamps
Select from lamps with four, six or eight watts
Models include 254 nm UV, 365 nm UV, combination 254/365 nm UV or UV with white light versions
Single UV models have two tubes of the same wavelength
2UV models use two different wavelengths
3UV models are available only in eight watt lamps and use 254/302/365 nm UV
Product Details
Select from a variety of wavelengths
Manufactured with a durable, extruded metal housing and scratch resistant powder paint. Select from a large range of lamps with single or multiple wavelengths and watts.

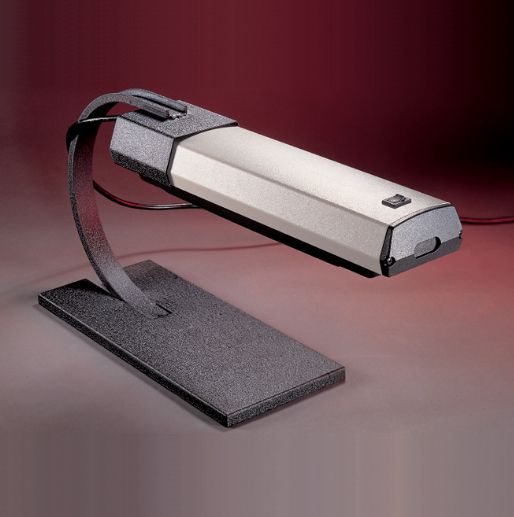

Rugged design is excellent for high usage. The lamps are lightweight for easy holding or place the lamp in the stand or cabinet for hands free operation. The built-in reflector enhances UV illumination.
Applications include:
Photochemistry/Phosphorescence
Inspection
Laboratory
General Chemical Laboratory
*Product performance and effectiveness will depend on the user.*
Order Information
EL Series Four Watt Lamp Part Numbers
| 115 V | 230 V | Model | Watt/Wavelength | Replacement Filter |
| 95-0264-01 | 95-0264-02 | UVL-14 | 4 Watt, 365 nm / White | 38-0183-02 |
| 95-0267-01 | 95-0267-02 | UVL-24 | 4 Watt, 365 nm | 38-0183-05 |
| 95-0271-01 | 95-0271-02 | UVLS-24 | 4 Watt, 2UV 254/365 nm | 38-0183-03 |
| 95-0265-01 | 95-0265-02 | UVM-14 | 4 Watt, 302 nm / White | 38-0183-01 |
| 95-0268-01 | 95-0268-02 | UVM-24 | 4 Watt, 302 nm | 38-0183-04 |
| 95-0270-01 | 95-0270-02 | UVLM-24 | 4 Watt, 302/365 nm | 38-0183-03 |
| 95-0266-01 | 95-0266-02 | UVS-14 | 4 Watt, 254 nm / White | 38-0183-01 |
| 95-0269-01 | 95-0269-02 | UVS-24 | 4 Watt, 254 nm | 38-0183-04 |
EL Series Six Watt Lamp Part Numbers
| 95-0275-01 | 95-0275-02 | UVL-26 | 6 Watt, 365 nm | 38-0182-05 |
| 95-0278-01 | 95-0278-02 | UVLM-26 | 6 Watt, 2UV 302/365 nm | 38-0182-03 |
| 95-0279-01 | 95-0279-02 | UVLS-26 | 6 Watt, 2UV 254/365 nm | 38-0182-04 |
| 95-0273-01 | 95-0273-02 | UVM-16 | 6 Watt, 302 nm / White | 38-0182-04 |
| 95-0274-01 | 95-0274-02 | UVS-16 | 6 Watt, 254 nm / White | 38-0182-01 |
| 95-0277-01 | 95-0277-02 | UVS-26 | 6 Watt, 254 nm | 38-0182-04 |
| 95-0272-01 | 95-0272-02 | UVL-16 | 6 Watt, 365 nm / White | 38-0182-02 |
EL Series Eight Watt Lamp Part Numbers
| 95-0248-01 | 95-0248-02 | UVL-28 | 8 Watt, 365 nm | 38-0158-01 |
| 95-0251-01 | 95-0251-02 | UVLM-28 | 8 Watt, 2UV 302/365 nm | 38-0158-03 |
| 95-0252-01 | 95-0252-02 | UVLMS-38 | 8 Watt, 3UV 254/302/365 nm | 38-0158-06 |
| 95-0201-01 | 95-0201-02 | UVLS-28 | 8 Watt, 2UV 254/365 nm | 38-0158-03 |
| 95-0199-01 | 95-0199-02 | UVM-18 | 8 Watt, 302 nm / White | 38-0158-05 |
| 95-0250-01 | 95-0250-02 | UVM-28 | 8 Watt, 302 nm | 38-0158-02 |
| 95-0200-01 | 95-0200-02 | UVS-18 | 8 Watt, 254 nm / White | 38-0158-05 |
| 95-0249-01 | 95-0249-02 | UVS-28 | 8 Watt, 254 nm | 38-0158-02 |
| 95-0198-01 | 95-0198-02 | UVL-18 | 8 Watt, 365 nm / White | 38-0158-04 |
Replacement Parts / Accessories

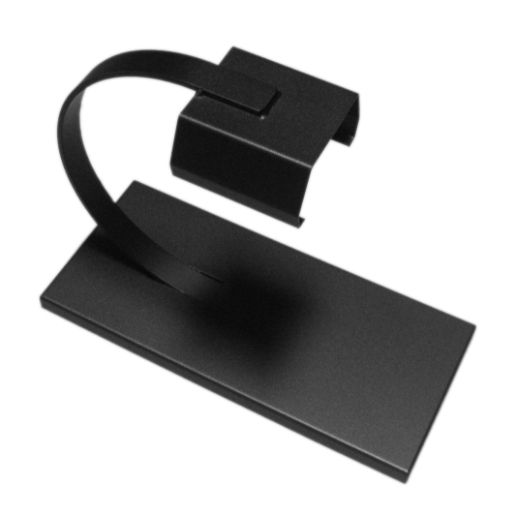

| 18-0063-01 | J-138 | Lamp Stand | |||
| 34-0056-01 | Replacement Tube | 8 Watt, White | |||
| 34-0006-01 | Replacement Tube | 8 Watt, 365 nm | |||
| 34-0042-01 | Replacement Tube | 8 Watt, 302 nm | |||
| 34-0007-01 | Replacement Tube | 8 Watt, 254 nm | |||
| 34-0063-01 | Replacement Tube | 6 Watt, White | |||
| 34-0034-01 | Replacement Tube | 6 Watt, 365 nm | |||
| 34-0044-01 | Replacement Tube | 6 Watt, 302 nm | |||
| 34-0013-01 | Replacement Tube | 6 Watt, 254 nm | |||
| 34-0066-01 | Replacement Tube | 4 Watt, White | |||
| 34-0005-01 | Replacement Tube | 4 Watt, 365 nm | |||
| 34-0071-01 | Replacement Tube | 4 Watt, 302 nm | |||
| 34-0003-01 | Replacement Tube | 4 Watt, 254 nm | |||
