使用熒光示蹤劑進行泄漏檢測

為了快速檢測流體泄漏及其來源，將365nm紫外燈與紫外線熒光示蹤劑一起使用。大多數汽油和柴油車輛發動機，土方設備和叉車制造商都使用此方法。通過以下方法檢測泄漏。將紫外線熒光示蹤劑與流體系統混合，例如水，油，燃料，冷卻劑和制冷劑，然后正常操作設備，使熒光添加劑循環流通。如果發生泄漏，UV熒光示蹤劑將與液體一起運行并保留在泄漏的位置。之后，用紫外線檢查燈照射外部表面，例如管道，接頭，連接器，墊片密封件和線圈。在紫外線熒光檢漏燈下，泄漏及其流路將發出明亮的黃色/綠色熒光。
Leak detection using fluorescent tracer additive

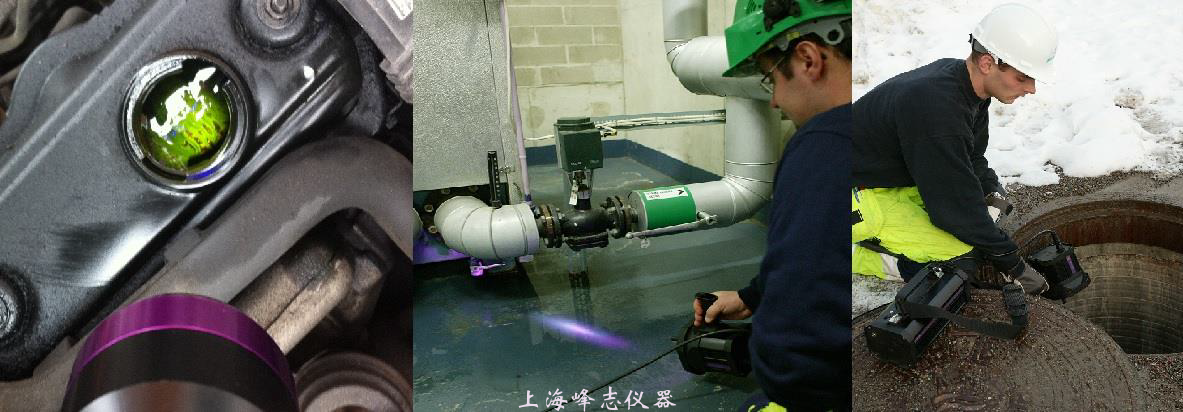

In order to detect fluid leaks and their sources quickly, UV (365nm) lights are used together with UV fluorescent tracer additives. This method is used by most manufacturers of petrol and diesel vehicle engines, earth moving equipment and fork lift trucks. Leakage is detected the following way. The UV fluorescent additive is mixed with a fluid system, e.g. water, oils, fuels, coolants and refrigerants, and then the equipment is operated as normal to allow the fluorescent additive to circulate throughout. If the leak occurs, the UV fluorescent tracer will run with the fluid and remain at the site of the leak. After that, all external surfaces such as pipework, joints, connectors, gasket seals and coils are inspected with the UV light. The leak and its flow path will glow bright yellow/green under the UV.

使用LabinOil進行泄漏檢測

瑞典蘭寶LabinOil熒光示蹤劑是一種熒光染料，應與石油基潤滑油一起使用。 LabinOil中的熒光通過紫外線照射而被激活。 Labino UVG2紫外線手電筒（UVG2 Spotlight Torch）是與LabinOil熒光檢漏劑一起使用的強大LED紫外光源。
您無需在發動機泄漏測試之前或之后清洗發動機，也不必清空發動機機油。將染料添加到機油中，啟動發動機，使染料與機油混合并在發動機中循環。使用Labino UVG2聚光燈照亮以識別泄漏。使用LabinOil套件時，不需要任何特殊培訓。
Leak detection using LabinOil
LabinOil is a florescent dye and should be used with petroleum based lubricants. The fluorescence in the LabinOil is activated by irradiating with UV-light. Labino UVG2 Spotlight Torch is a powerful LED light source used together with LabinOil.
You do not need to clean the engine before or after the engine leakage test, nor do you have to empty the engine oil. You add the dye into the engine oil, start the engine to make the dye mix with the oil and circulate in the engine. Illuminate using the Labino UVG2 Spotlight to identify leakage. No special training is required when using the LabinOil kit.

SuperXenon是能在在日光下實現高強度的氙氣紫外燈

SuperXenon是一種高強度的紫外線燈，非常適合在明亮的日光下進行戶外檢查。該氙氣紫外線燈提供一個50瓦的燈泡，以及一個Midlight反射鏡，您將獲得很好的覆蓋率。 瑞典蘭寶SuperXenon氙氣紫外線燈可提供手槍式手柄和頂部手柄，以及電池或交流電供電。
Xenon Light for High intensity in Day light
SuperXenon is a high intensity light, perfect for out dorrs inspection in broad day light. The lamp offers a 50 watt bulb, together with a Midlight reflector you will get a very good coverage. SuperXenon is available with pistol handel and top handle, as well as battery or AC operated.
BigBeam大面積照射的紫外線燈
BigBeam手持式大面積紫外線燈提供寬光束，可進行大范圍覆蓋和免提檢查。您可以同時檢查多個零件而不會中斷。您可以通過多種方式安裝BigBeam。可以在墻壁或天花板上使用安裝支架，也可以使用摩擦臂從桌子或地板上進行安裝。
BigBeam for Large Coverage
BigBeam offers a wide beam for large coverage and hands free inspection. You can inspect several parts at the same time without interruption. You can mount the BigBeam in several ways. Either with a mounting bracket on the wall or ceiling, or a friction arm to mount from a table or floor.

MidBeam 2.0輕巧的手持式紫外線檢查燈
MidBeam 2.0是一款小型手持紫外線檢查燈，其尺寸具有出色的覆蓋率。該紫外線檢查燈可作為電池或市電（AC）使用。如果需要免提檢查，則可以輕松地將燈安裝在摩擦臂或柔性臂上。
MidBeam 2.0 for light weight Hand Held Inspection
MidBeam 2.0 is a small handheld lamp with excellent coverage for its size. The lamp is available as battery or mains (AC) operation. If a hands free inspection is required the lamp can easily be mounted on a friction arm or on a flexible arm.

紫外線手電筒燈和紫外線頭燈
瑞典蘭寶Labino提供各種紫外線手電筒和紫外線頭燈。泄漏檢測中zui受歡迎的是UVG2聚光燈和UVG5紫外線頭燈。高強度使得可以檢測日光下的泄漏。
UV Torch Lights and Head light
Labino offers a wide range of torches and Headlights. The most popular for Leak Detection are UVG2 Spotlight and UVG5 Headlight Spotlight. The high intensity makes it possible to detect leakage in day light.
