UVP Blak-Ray? UV Benchtop Lamps
Black Ray XX-15 UV Lamps for Cleavage Protocol
Cleavage occurs by irradiation with near-UV light (300-350 nm, complete cleavage occurs within 5 minutes. Try using a Black Ray XX-15 UV lamp (Ultraviolet Products Inc., San Gabriel, CA) at a distance of 15 cm (emission peak 365 nm, 300 nm cut-off, 1.1 mW intensity at~31 cm).
Description
Durable aluminum housing with scratch resistant powder paint finish
UV intensity can be increased by bringing the lamp closer to object being sterilized
Include holes on each end of the fixture for hanging or mounting the lamp
Specifications
| Product Type | UV Bench Lamp |
| Voltage | 115 V |
| Wavelength | 365 nm |
| Dimensions (L x W x H) | 19.75 x 6 x 4.25 in. (502 x 152 x 108 mm) |
| Height (Metric) | 108 mm |
| Length (Metric) | 502 mm |
| Width (English) | 6 in. |
| Light Source | UV-A |
| Wattage | 15 W |
| Case Material | Aluminum |
| Height (English) | 4.25 in. |
| Length (English) | 19.75 in. |
| Packaging Quantity | 1 Ea. |
| Width (Metric) | 152 mm |
大功率紫外線燈系列 15W 20W 40W

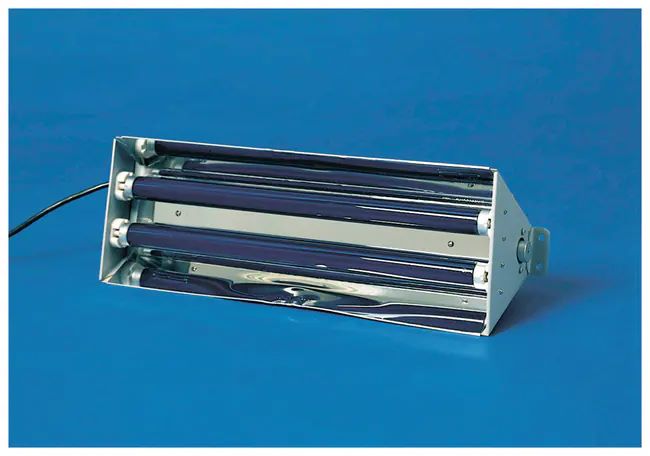

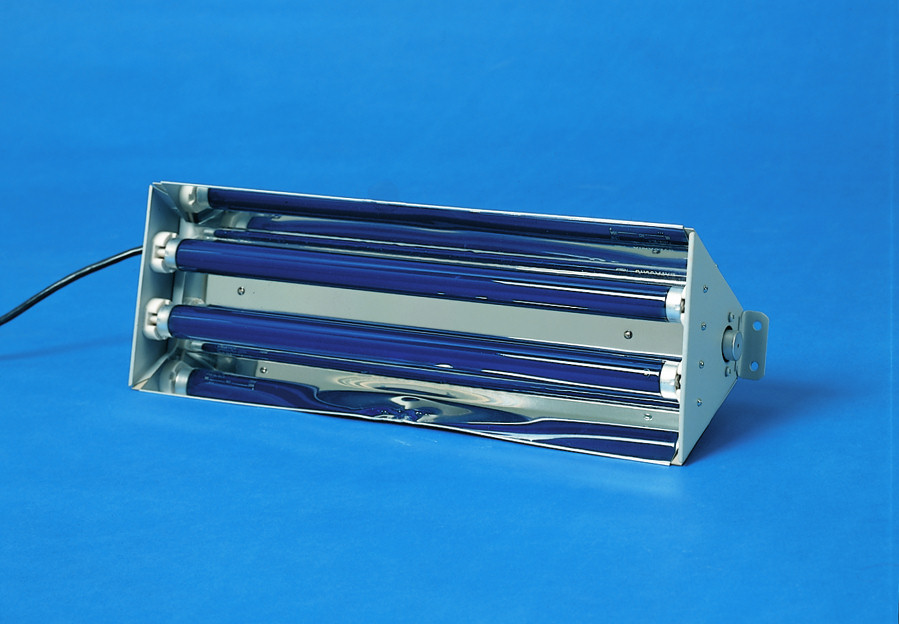

XX-Series - 15 Watt
XX-Series - 15 Watt
| 115V | 230V | Model | Description | ||
| 95-0042-03 | 95-0042-02 | XX-15 | XX-15 Bench Lamp Fixture (no UV tubes) | ||
| 95-0042-06 | 95-0042-11 | XX-15BLB | XX-15BLB Bench Lamp, 365nm BLB | ||
| 95-0042-05 | 95-0042-09 | XX-15S | XX-15S Bench Lamp, 254nm | ||
| 95-0042-07 | 95-0042-13 | XX-15L | XX-15LW Bench Lamp, 365nm | ||
| 95-0042-08 | 95-0042-15 | XX-15M | XX-15MR Bench Lamp, 302nm | ||
XX-Series - 20 Watt | |||||
| 95-0045-04 | 95-0045-05 | XX-20BLB | XX-20BLB Bench Lamp, 365nm BLB | ||
| 95-0045-07 | 95-0045-08 | XX-20S | XX-20S Bench Lamp, 254nm | ||
| 95-0045-01 | 95-0045-02 | XX-20 | XX-20S Bench Lamp, No UV tubes | ||
XX-Series - 40 Watt | |||||
| 95-0043-04 | 95-0043-05 | XX-40BLB | XX-40BLB Bench Lamp, 365nm BLB | ||
| 95-0043-07 | 95-0043-08 | XX-40S | XX-40S Bench Lamp, 254nm | ||
| 95-0043-01 | 95-0043-02 | XX-40 | XX-40 Bench Lamp, No UV tubes | ||
| 95-0043-13 | 95-0043-14 | XX-40M | XX-40M Bench Lamp, 302nm | ||
支架 | |||||
| 18-0062-01 | XX-15 Stand | ||||
| Replacement Tubes | |||||
| 34-0009-02 | Tube, 15 Watt, 365nm | ||||
| 34-0017-01 | Tube, 15 Watt, 365nm BLB | ||||
| 34-0017-02 | Tube, 15 Watt, 352nm BLB | ||||
| 34-0039-01 | Tube, 15 Watt, 302nm | ||||
| 34-0008-01 | Tube, 15 Watt, 254nm | ||||
| 34-0068-01 | Tube, 20 Watt, 365nm BLB | ||||
| 34-0067-01 | Tube, 20 Watt, 254nm | ||||
| 34-0068-02 | Tube, 40 Watt, 365nm BLB | ||||
| 34-0067-02 | Tube, 40 Watt, 254nm | ||||
| 34-0070-03 | Tube, 40 Watt, 302nm | ||||
