美國UVP公司M-20V臺式紫外透射儀中波302nm透照臺面積20x20cm

UVP的3UV臺式透照臺提供365nm，302nm，254nm三種紫外波長2UV透照臺提供302nm和365nm的兩種紫外波長查看365nm的長波紫外光凝膠，以避免長時間損壞樣品。研究人員可以使用中波302nm增加熒光。短波254nm的來照射樣品。緊湊型透照臺，重量輕8瓦的型號提供了一個低成本的紫外透射儀Benchtop系列透照臺合理的結構設計紫外燈管，保證了紫外透射臺光照亮度均勻。單波長紫外透射臺標配有302nmUV燈管,另有多種波長可選，以配合不同染料如常用的EB, SYBR-Green，SYBR-Orange等染色的凝膠觀察。雙波長的紫外透射臺可滿足實驗的不同需要，302nm適合DNA/RNA樣品的觀察和分析，365nm適合制備觀察以及切割條帶，減少對DNA的破壞.雙波長的紫外透射臺可滿足實驗的不同需要。紫外防護板設計，既不影響切膠操作，又防止了紫外線對人體的傷害。警告：透射儀的紫外線輻射，會對眼睛和皮膚造成嚴重損害，注意保護措施。

美國UVP公司M-20V臺式UV透射儀中波302nm透照臺面積20x20cm

230V訂貨號：95-0452-02M-20V中波302nm紫外透照臺，透照面積為20x20cm

主要特點

增強的紫外線輸出和強度不閃爍較寬的強度范圍與變量選擇（指定機型）燈快速啟動通用電源降低耗電量凝膠可視化和凝膠文件

產品規格

強度：部分型號提供單強度其他型號包括可變強度。可變強度設置 - 高/中/低：設置允許對凝膠進行日常拍攝的熒光紫外光激發。中檔非常適合觀看快速單波段切除。低檔設置允許定位和準備凝膠，切除多頻段和對焦攝影。紫外光源：參考部件號選項卡功率：8或6瓦外形尺寸3UV型號：279x356x137mm2UV型號：279x356x122mm單UV/可變強度型號（除M-10）：279x356x122mmM-10：184x260x114mm高度包括紫外線阻隔板（型號）

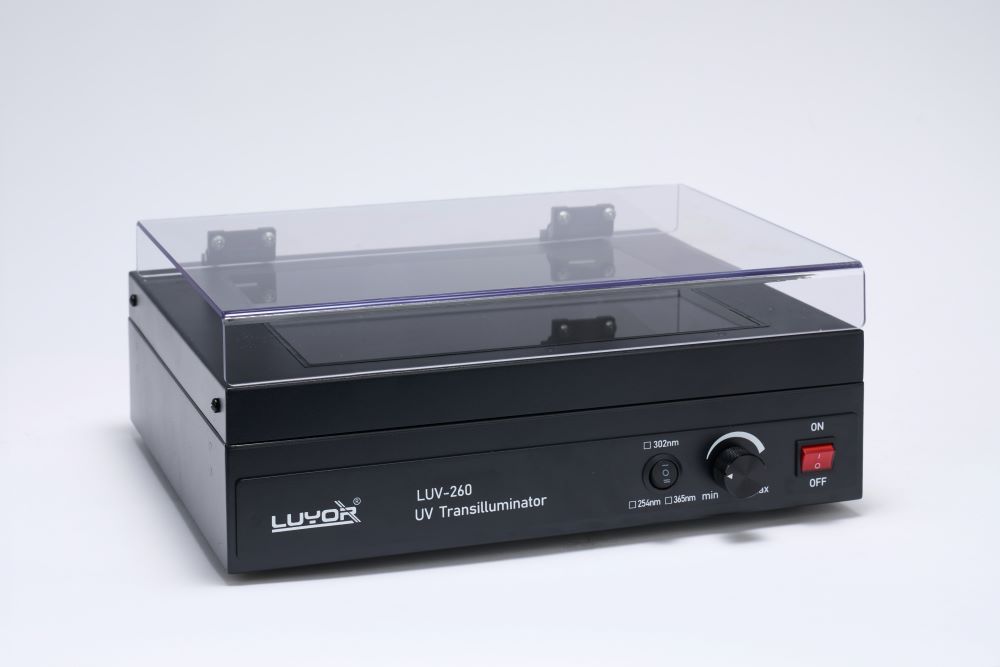

推薦一款經濟型紫外透射儀:美國路陽LUV-260系列紫外透射臺/紫外透射儀

型號

Benchtop UV Transilluminators

UVP offers a wide range of filter sizes and single or multiple UV wavelength transilluminators in a compact, benchtop size. UVPs patented 3UV? Benchtop Transilluminator (main picture) provides the selection of longwave, midrange and shortwave in one compact unit.

Applications

Gel ElectrophoresisDNA FluorescenceProtein Fluorescence

Main Features

Increased ultraviolet output and intensityNo light flickerWider intensity range with variable selection (select models)Fast lamp start upUniversal power supplyReduced electrical consumptionLonger tube lifeLighter weightImproved gel visualization and gel documentation

Transilluminator Features:

UVPs patented 3UV Benchtop Transilluminator provides the selection of 365nm, 302nm and 254nm in one compact unit2UV models offer 302nm and 365nm UV in one modelEasily view gels under 365nm longwave UV for extended periods of time avoiding photonicking damage. Researchers can use the 302nm midrange to increase the fluorescence for photodocumentation. Shortwave 254nm UV is used to irradiate samplesAll Benchtop Transilluminator models are compact, lightweight unitsThese 8-watt models provide a low cost alternative to the High Performance UV TransilluminatorsA variety of filter area work surface sizes are availableHinged, clear UV blocking cover, included with each transilluminator, is adjustable for access to the filter surfaceWARNING: Transilluminators are powerful sources of ultraviolet radiation which can cause serious damage to unprotected eyes and skin. Read the ultraviolet Caution Information before operating any transilluminators.

Specifications

Intensity: Select models offer single intensity other models include variable intensity. Refer to the part numbers tab for information.Variable intensity settings - High/Medium/Low: High setting allows for UV excitation of fluorophores on gels for routine photography. Medium is excellent for viewing and quick single-band excision. Low setting allows for positioning and preparation of gels, excising multiple bands, and focusing for photography.UV Source: Refer to the Part Numbers tab for specific wavelengths for each modelWatts: 8 or 6 - Refer to the Part Numbers tab for wattsDimensions3UV Models: 11D x 14W x 5.4H in. (279 x 356 x 137mm)2UV Models: 11D x 14W x 4.8H in. (279 x 356 x 122mm)Single UV/Variable Intensity Models (Except M-10): 11D x 14W x 4.8H in. (279 x 356 x 122mm)M-10: 7.25D x 10.25W x 4.5H in. (184 x 260 x 114mm)Height includes UV blocking cover (all models)Note about UV: UVP refers to its midrange UV products as 302nm. Other manufacturers may say 300nm, 310nm or 312nm. The spectral output of these units is the same as UVPs 302nm. Please call UVPs technical services for further information or link here to Midrange Application Bulletin.

Options

Gel ToolsConverter PlatesUV Blocking Eyewear

Ordering Information

*Standard ballast, not electronic ballast. 115V unit.
