美國UVP(Analytik Jena) UVLMS-38手持式紫外線燈三波長于一體，可輕松切換三種波長（長波，中波和短波）為滿足你的各種測試需要。 三種波長：長波365nm、短波254nm和中波302nm。金屬外殼，堅固耐用，耐擠壓等特點，有單個波長和多種波長組合可選擇。
紫外強度：
LW 365nm: 950μW/cm2
SW 254nm: 1200 μW/cm2
MR 302nm: 900 μW/cm2
Analytik Jena EL系列手持式紫外線燈主要特點
從各種波長的選擇：
? 具有4W，6W或8W的選擇。
? 可選擇的型號包括254nm的短波，365nm的長波或短波和長波的雙波長紫外組合。
? 可提供一個紫外光和一個白光的組合配置，被照射的材料在光線昏暗的區域時，可使用白光照明觀察。
? 雙燈管模式可以選擇一樣的波長或兩種不同的波長。
? 只有8W的紫外燈可選擇三種波長，UVLMS-38三波長于一體，可輕松切換三種波長（長波，中波和短波）為滿足你的各種測試需要。
? 堅固耐用的設計促使了高使用率。EL手持燈是重量輕，易于手持或結合支架免提操作。內置反射板，增強紫外強度。
美國UVLMS-38手持式紫外線燈技術規格
| 技術規格 | |
| 紫外光源 | 3UV：長波365nm和中波302nm和短波254nm |
| 功率 | 8W |
| 外殼 | 金屬外殼，具有防刮耐磨粉末涂層 |
| 線長 | 2.5米 |
| 紫外燈尺寸 | 376×96×64mm |
| J-140燈架尺寸 | 280X330X80mm |
型號選擇
| Part Numbers型號 | |||
| 型號 | 貨號 | 功率/波長 | 可替換燈管 |
| UVL-28 | 95-0248-02 | 8W，365nm，手持式長波紫外線燈 | 34-0006-01 |
| UVLM-28 | 95-0251-02 | 8W，2UV，302nm/365nm，雙波長紫外燈 | 34-0006-01 365nm |
| UVLMS-38 | 95-0252-02 | 8W，3UV,254nm/302nm/365nm，三波長紫外燈 | 34-0006-01 365nm 34-0042-01 302nm |
| UVLS-28 | 95-0201-02 | 8W, 365nm/254nm，雙波長紫外燈 | 34-0006-01 365nm 34-0007-01 254nm |
| UVM-18 | 95-0199-02 | 8W，302nm/白光，中波紫外線燈 | 34-0042-01 |
| UVM-28 | 95-0250-02 | 8W，302nm，中波紫外線燈 | 34-0042-01 |
| UVS-18 | 95-0200-02 | 8W，254nm/白光，短波紫外線燈 | 34-0007-01 |
| UVS-28 | 95-0249-02 | 8W，254nm，短波紫外線燈 | 34-0007-01 |
| UVL-18 | 95-0198-02 | 8W，365nm/白光，長波紫外線燈 | 34-0006-01 |
| J-138 | 18-0063-01 | Lamp Stand燈架 | |
| J-140 | 18-0062-01 | Lamp Stand燈架 | |
選購附件
| 名稱 | 型號 | 描述 |
| 紫外觀察箱 | 95-0257-02 | C-65 |
| 紫外防護眼鏡 | 98-0002-06 | UVC-305防護眼鏡保護眼睛 |
| 紫外防護面罩 | 98-0002-04 | UVC-803防護面罩保護面部 |
| 紫外燈管 | 34-0006-01 | 8W，365nm |
| 紫外燈管 | 34-0042-01 | 8W，302nm |
| 紫外燈管 | 34-0007-01 | 8W，254nm |
| 白光燈管 | 34-0056-01 | 8W，白光 |
| J-140支架 | 18-0063-02 | 免手提操作 |
UVLMS-38手持式紫外線燈產品操作說明書下載地址：
3UV Series Handheld Lamps Operating Instructions.pdf
UVP 3UV Lamps UVLMS-38
Three wavelengths, 254/302/365 nm UV, in one lamp
Selection of each wavelength made easy by a turn of the dial located on one end of the housing
Reflector surfaces mounted behind each tube provides maximum UV for fluorescence applications
Lightweight and ergonomically designed for hand or stationary use
Design allows for stationary use by standing the lamp on its end or side
Product Details
Three wavelengths in one lamp
Innovative, versatile and patented 3UV lamp houses multiple wavelengths: longwave, shortwave and midrange UV in one lamp for multiple applications. Reflectors behind each tube provide maximum UV light for fluorescent applications. Lamp is available in four, six or eight watts.
Applications include:
Photochemistry/Phosphorescenc
Inspection
Laboratory
General Chemical Laboratory
Education
*Product performance and effectiveness will depend on the user.*
Technical DataSpecifications
Watts: | Four, six or eight watt models |
UV Source: | 254 nm, 302 nm, 365 nm |
Dimensions: | 3UV-34: 9.5L x 3W x 4.5D in. (241 x 76 x 114 mm) 3UV-36: 12.5L x 3W x 4.5D in. (318 x 76 x 114 mm) 3UV-38: 15.5L x 3W x 4.5D in. (394 x 76 x 114 mm) |
Order Information
| Part Numbers | |||||
|---|---|---|---|---|---|
| 115 V / 60 Hz | 230 V / 50 Hz | Model | Watts | Wavelength | Replacement Filter |
| 95-0341-01 | 95-0341-02 | UVP-3UV | 4 watts | 254/302/365 nm | 38-0286-03 |
| 95-0342-01 | 95-0342-02 | UVP-3UV | 6 watts | 254/302/365 nm | 38-0286-02 |
| 95-0343-01 | 95-0343-02 | UVP-3UV | 8 watts | 254/302/365 nm | 38-0286-01 |
| Replacement Tubes | |||||
| 34-0006-01 | 8 watt | Replacement Tube, 365 nm | |||
| 34-0042-01 | 8 watt | Replacement Tube, 302 nm | |||
| 34-0007-01 | 8 watt | Replacement Tube, 254 nm | |||
| 34-0034-01 | 6 watt | Replacement Tube, 365 nm | |||
| 34-0044-01 | 6 watt | Replacement Tube, 302 nm | |||
| 34-0013-01 | 6 watt | Replacement Tube, 254 nm | |||
| 34-0005-01 | 4 watt | Replacement Tube, 365 nm | |||
| 34-0071-01 | 4 watt | Replacement Tube, 302 nm | |||
| 34-0003-01 | 4 watt | Replacement Tube, 254 nm | |||

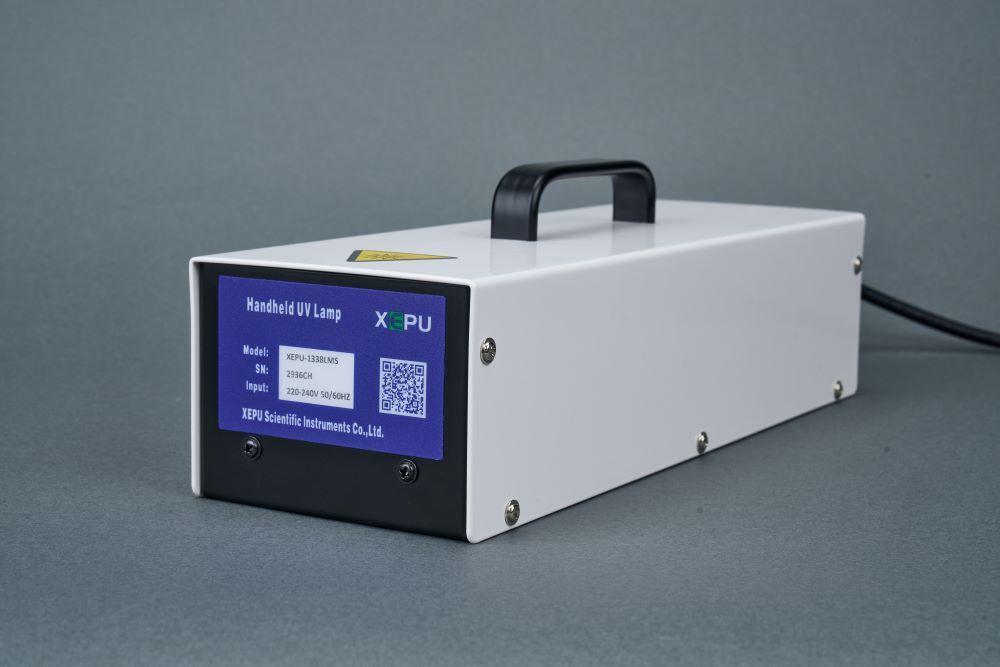

推薦一款經濟型的三波長紫外燈：
